RF-Roto-M4 20x30

OVERVIEW

Rotary RF Welder

4-6 Position Indexing Turntable

RF-Roto-M4-D96 20x30 / 10KW
The Rotary RF Welder is designed to RF seal PVC, EVA & TPU / Coated Materials mainly used for the medical and automotive applications.

Typical Applications

  • RF Welded Solution Bags
  • RF Heat Sealed Air Bladders
  • RF Sealed Straps with hook & loop
  • RF Welding Cold Packs
  • etc.
  • easy-123 png

    Easy Setup

  • Easy-Cloud png

    Easy Validate

Quick Specs for Mid-Size Rotary RF Welding Machine

Model No.

RF-Roto-M4-D96

Applications

RF welding solution bags, RF welded cushions, cold packs, RF sealed blood pressure cuffs, RF welded tourniquet cuffs

RF Seal Area

20" x 30" / 16" x 44" optional

RF Generator

8 -10 kW Hybrid Generator

27.12 MHz Frequency

Control System

Allen Bradley PLC

12" Touch Screen PC HMI

Utilities

200-240VAC / 70A /50-60Hz

80psi / 5bar Clean Dry Air (CDA)

Footprint

96" x 103" / 244cm x 262cm - RF Welder

24" x 32" / 61cm x 81cm - RF Generator

Shipping Weight

7700lb / 3500kg / Crated

Compliance

ISO-13849-1 / Machinery Safety Standard

UL or CE Optional

Validation Support

Documents available for IQ, DOE and Die FAI

OQ at customer site per customer request

Operating Environment

65-95°F / 18-35°C

68% Max Humidity Non-Condensing

Max 2000m elevation

Rotary RF Welder Highlights

20 x 30"

RF Seal Area

4-6 Position 96" Dial

Index Dial Size

8 - 10 KWatt

RF Output Power

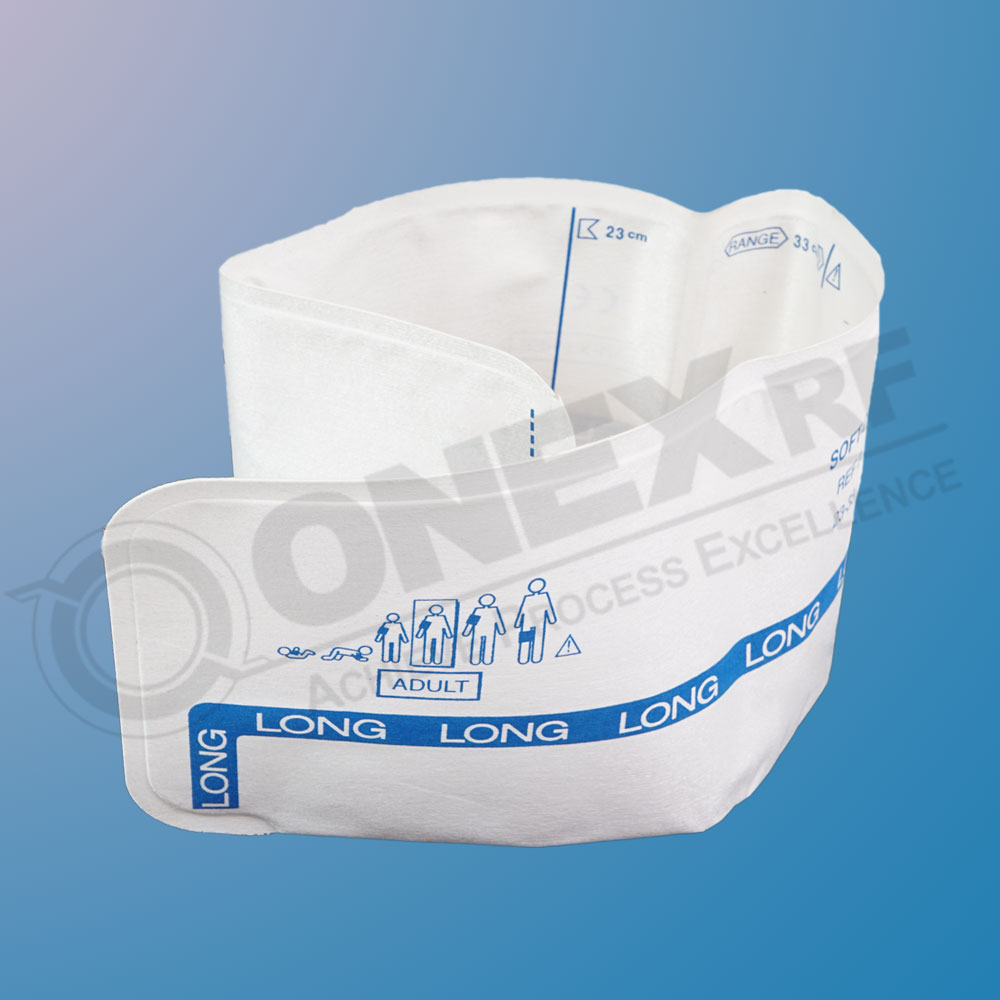

RF Welded Blood Pressure Cuffs
Pressure Cuffs
RF Welded Hook and Loop Straps
Facemask Straps
RF Welding Tourniquet Cuff
Tourniquet Cuff
TPU Cold Pack
Cold Pack
RF Sealed Lumbar Support Arms
Lumbar Support
RF Sealed Tourniquet Cuff
Tourniquet Cuff

Have an Application?

Let's Talk

Schedule a Call
Get RF-Roto-M4 Quote
