HS-Roto-S3

SPECIFICATIOS

Small Rotary Heat Sealing Machine

HS-Roto-S3

Rotary Heat Sealing Machine

Model Number

HS-Roto-S3-D60-10x20

Heat Seal Area

10 x 20" / 390 mm x 780 mm

Index Dial Size

60"  / 1525 mm

Heat Sealing MAX Temperature

450°C

Press Force

1000 lb  / 4,448 Newtons (N) with single cylinder at 80-psi

Press Stroke

4" / 100 mm during normal operation - 8" / 200 mm for maintenance

Press Daylight

2.750" / 70 mm (for overall die height)

Temperature Control

Type

Cartridge Heaters with TC embedded in the upper die mounting platen

Controls

Temperature Controller or AB PLC with TC Module

MAX Temp.

450°C

Utilities

3 Phase 200-240 VAC 10A

Indexer Information

Sankyo

Electric CAM Alfa Series High Precision Indexers

Positions

3, 4, 6 or 8 positions available as an option

19AD

72 - 96" Diameter

23AD

120" Diameter Dials

Controls

ABB Variable Frequency Drive (VFD)

Fast-Stop

Optional Break Resistor

Utilities

Electricity

100-240 VAC / 60-70 A / 50-60 Hz

Pneumatic

80 PSI / 5 bar - Clean Dry Air (CDA)

Control System

Process Controller

Allen Bradley PLC - Compact Logix

Operator Interface

12" Touch Screen PC HMI

PC HMI Operating System

Windows 7 Pro

Processor

Generation Intel® Core™ i7-8700 T with vPro™ 2.40 GHz

Storage

60-128 GB SSD

Memory

4GB DDR4 2666 MHz SoDIMM

PC-HMI Ports & Slots

PC HMI / 2 x USB 3.1 Gen 2**l, 2 x USB 3.1 Gen 1**, RJ45 (1 Gb Ethernet), HDMI

Dimensions

Rotary Heat Sealer

103" x 96" x 87" / 262 cm x 244 cm x 220 cm

System Weight

Rotary Heat Sealing Station

5500 lb / 2500 kg

Indexing Dial

175 lb / 79 kg

Total Shipping Weight

3000 lb / 2275 kg / Crated

Operating Environment

Temperature

65-95°F / 18-35°C

Humidity

68% Maximum relative humidity non-condensing

Elevation

up to 2000 m

Compliance

Machine Safety

ISO 13849-1 / OSHA

Certifications

UL per Request

Software

FDA 21 part 11

Validation Support

IQ

Documents available up on request for a fee

FAI and DOE

Documents available up on request for a fee

OQ

Support available at customer site per request


ONEX RF Hybrid Generator

RFHG-27-10
The ONEX Hybrid Generators are designed for 100% duty cycle, which means you can run them at max power continuously without any issues or output power fluctuations. The generator power is set by PLC analog voltage, which is maintained by closed loop control circuit.

8-10 KWatt RF Power

  • Fastest arc shut down circuit
  • Output power is 100% Duty Cycle
  • Output is controlled by closed loop feedback
  • Tuned for 0-10vdc linear power control
  • Works with 50 ohm Impedance Match-Network
  • Comes with Self Monitoring Diagnostic Circuit

Learn more about

ONEX RF Generator Technology



27.12 MHz

Tuned Frequency

0-10,000 watts

Calibrated RF Power


  • Main Screen
  • Manual Screen
  • Setup Screen
  • Recipe Screen

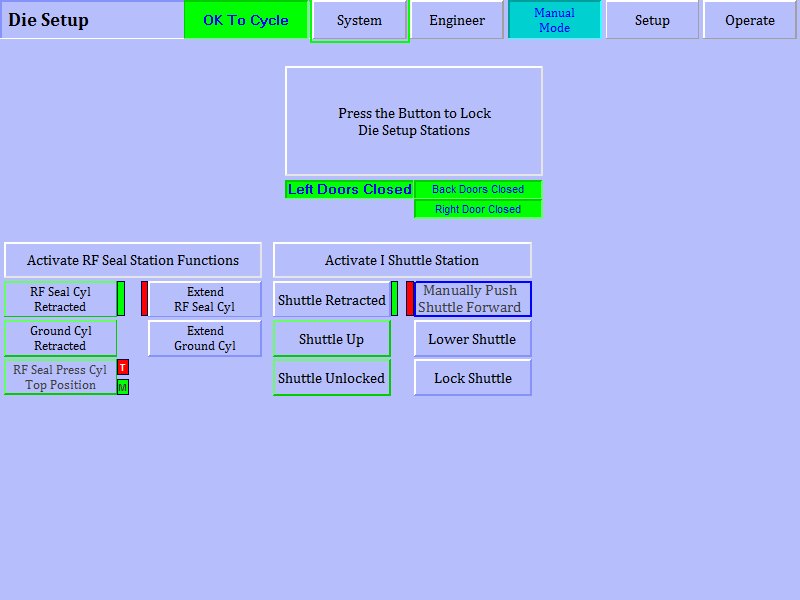

  • Die Setup Screen
  • Data-Log Screen

ONEX RF uses Allen Bradley PLC and 12" Touch Screen PC based HMI to control the RF Welding Process

The RF welding process is very easy to setup and validation because our RF generator technology output is always constant. Your validated parameters will allays be constant and never require tweaking even when the tube starts degrading. Read more about RF Welder's Process Control and RF Welder's theory of operations... We offer validation support, including FAT Installation Qualification (IQ) documentation.
