RF-Shuttle-M2-LR 20x30

SPECIFICATIONS

Standard Dual Shuttle RF Welding System

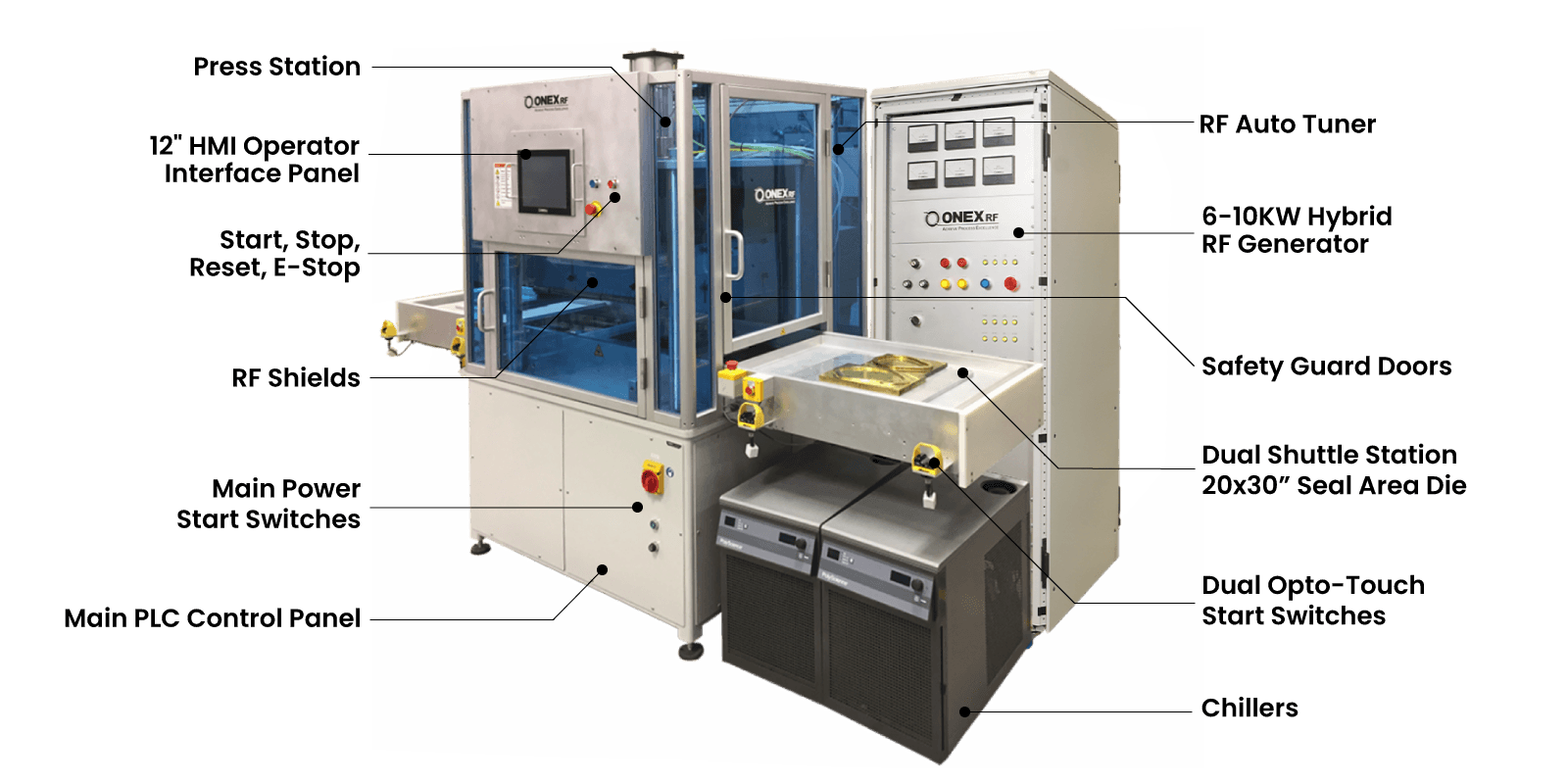

RF-Shuttle-M-LR2 Specification

Standard Left Right Dual Shuttle RF Sealing System

Model Number

RF-Shuttle-M2-LR 20x30 6-10KW

RF Seal Area

20 x 30" / 508 mm x 760 mm

Shuttle Size

26x36"  / 660x900 mm

Recommended RF Sealing Power

6-10 kWatt

Press Force

2000 lb  / 8,896 Newtons (N) with single cylinder at 80-psi

Press Stroke

4" / 100 mm during normal operation - 8" / 200 mm for maintenance

Press Daylight

2.750" / 70 mm (for overall die height)

RF Switch

2 or 3 cycle available as an option

Hybrid RF Generator

Model No.

RFHG-10-27

Generator Type

Hybrid Amplifier / 1st stage Solid State Driver with final stage Tube Amplifier

RF Power

8-10,000 watts

Frequency

27.12 MHz

Impedance

50 Ohm

Duty Cycle

100% at 20°C room temperature

Utilities

3 Phase 200-240 VAC 50A

Dimensions

24" x 36" x 72"

RF Auto Tuner

Model No.

RFMN-50-27-10

Arc Detection

5 VDC signal

Controls

Auto-Start at RF Signal Detection

Frequency

27.12 MHz

Impedance

50 Ohm

Utilities

120 VAC 5A

Utilities

Electricity

100-240 VAC / 50-60 A / 50-60 Hz

Pneumatic

80 PSI / 5 bar - Clean Dry Air (CDA)

Control System

Process Controller

Allen Bradley PLC - Compact Logix

Operator Interface

12" Touch Screen PC HMI

PC HMI Operating System

Windows 7 Pro

Processor

Generation Intel® Core™ i7-8700 T with vPro™ 2.40 GHz

Storage

60-128 GB SSD

Memory

4GB DDR4 2666 MHz SoDIMM

PC-HMI Ports & Slots

PC HMI / 2 x USB 3.1 Gen 2**l, 2 x USB 3.1 Gen 1**, RJ45 (1 Gb Ethernet), HDMI

Dimensions

RF Generator

24" x 32" x 72" / 610 mm x 810 mm x 1830 mm

RF Welder

118" x 46" x 87" / 2990 mm x 1160 mm x 2200 mm

Controller Opens 25" / 625 mm

System Weight

RF Generator

550 lb / 250 kg

RF Welding Station

3000 lb / 1200 kg

Total Shipping Weight

4000 lb / 1800 kg / Crated

Operating Environment

Temperature

65-95°F / 18-35°C

Humidity

68% Maximum relative humidity non-condensing

Elevation

up to 2000 m

Compliance

Machine Safety

ISO 13849-1 / OSHA

Certifications

UL per Request

Software

FDA 21 part 11

Validation Support

IQ

Documents available up on request for a fee

FAI and DOE

Documents available up on request for a fee

OQ

Support available at customer site per request


ONEX RF Hybrid Generator

RFHG-27-8/10
The ONEX Hybrid Generators are designed for 100% duty cycle, which means you can run them at max power continuously without any issues or output power fluctuations. The generator power is set by PLC analog voltage, which is maintained by closed loop control circuit.

8-10 KWatt RF Power

  • Fastest arc shut down circuit
  • Output power is 100% Duty Cycle
  • Output is controlled by closed loop feedback
  • Tuned for 0-10vdc linear power control
  • Works with 50 ohm Impedance Match-Network
  • Comes with Self Monitoring Diagnostic Circuit

Learn more about

ONEX RF Generator Technology



27.12 MHz

Tuned Frequency

0-10,000 watts

Calibrated RF Power


  • Main Screen
  • Manual Screen
  • Setup Screen
  • Recipe Screen
  • Die Setup Screen
  • Data-Log Screen

ONEX RF uses Allen Bradley PLC and 12" Touch Screen PC based HMI to control the RF Welding Process

The RF welding process is very easy to setup and validation because our RF generator technology output is always constant. Your validated parameters will allays be constant and never require tweaking even when the tube starts degrading. Read more about RF Welder's Process Control and RF Welder's theory of operations... We offer validation support, including FAT Installation Qualification (IQ) documentation.
